Just a couple of images to show I have been working on the car....
[attachment=2]dash.jpg[/attachment]

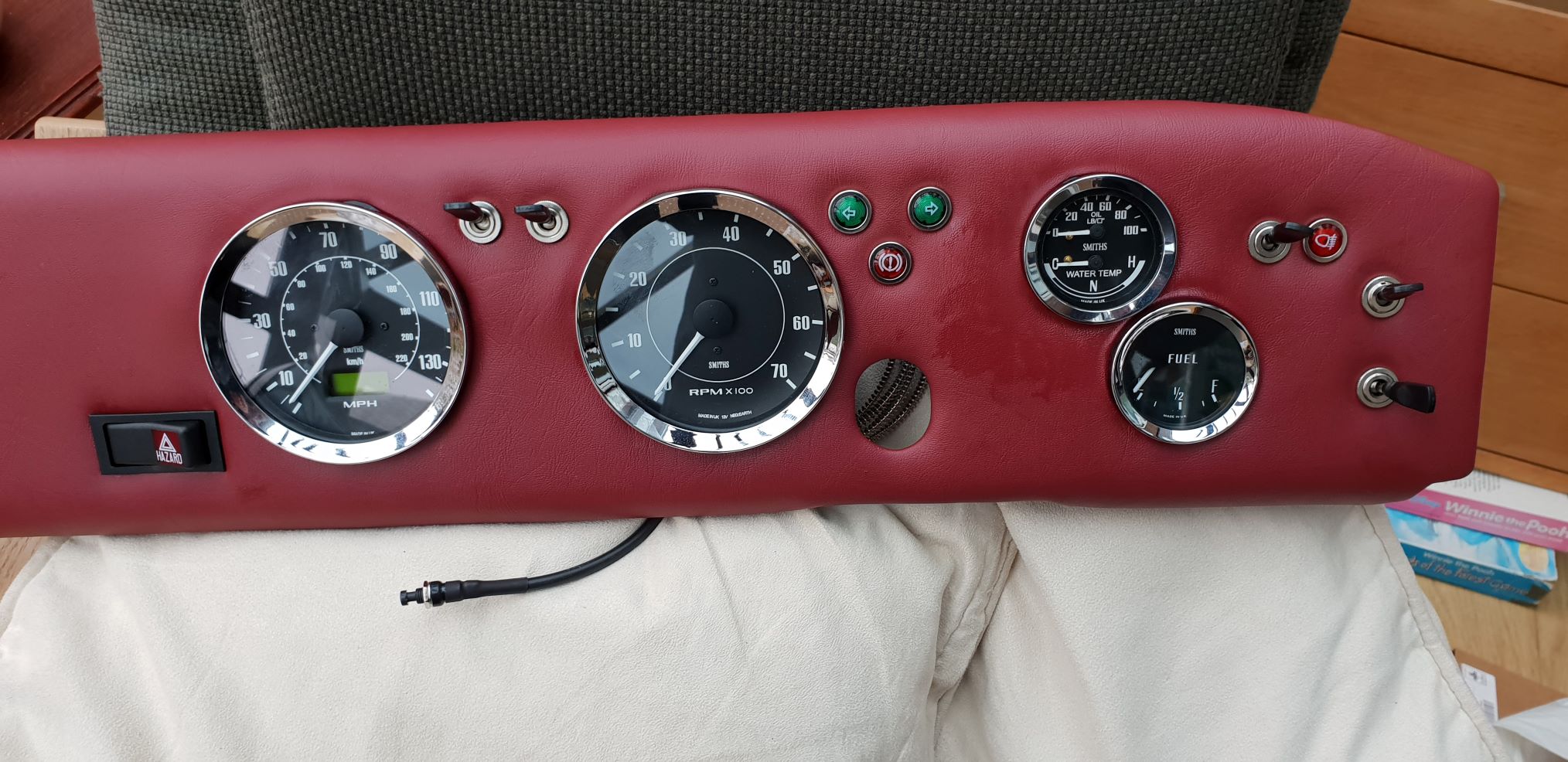

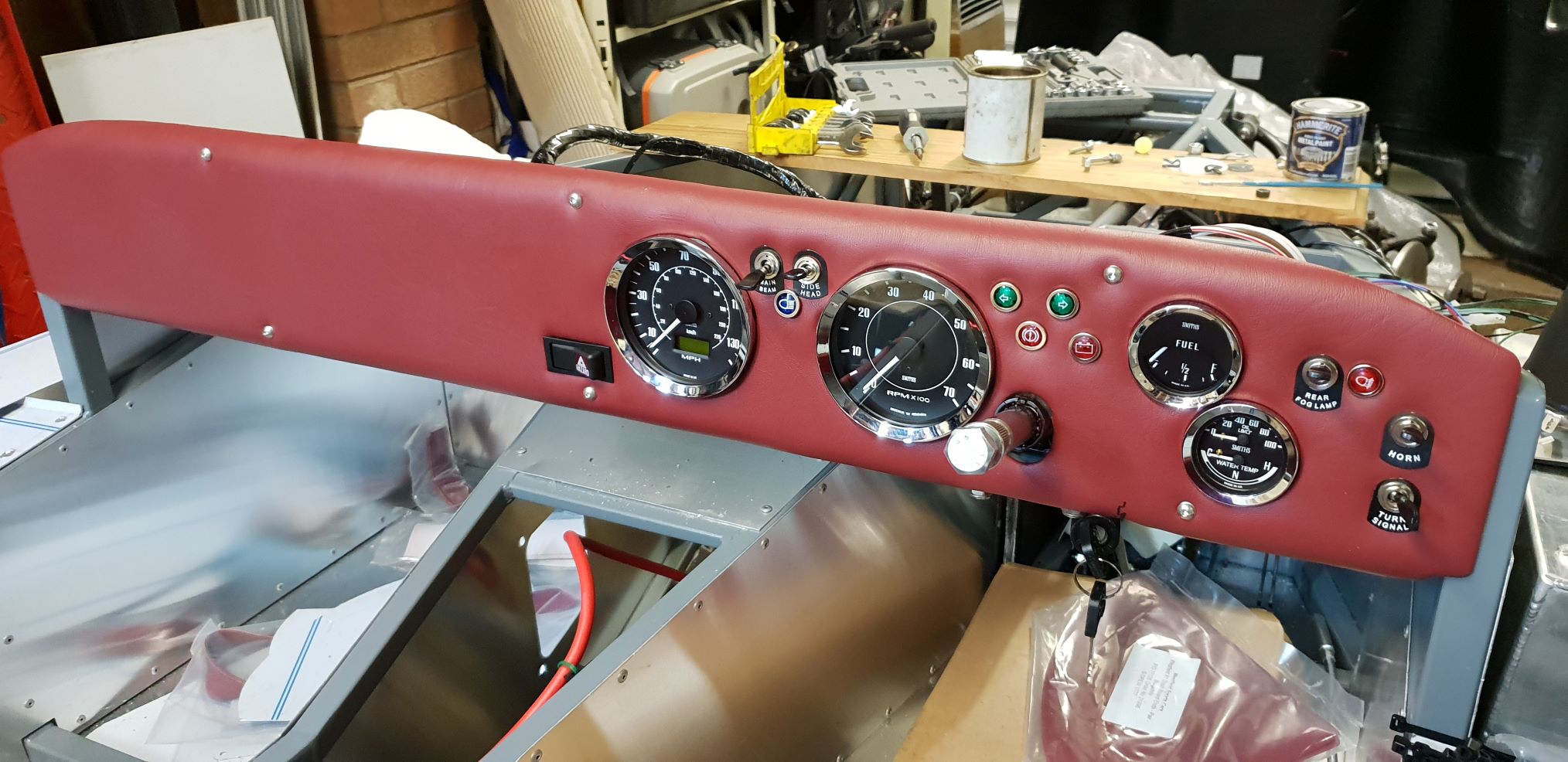

The dash just about completed.
[attachment=1]handbrake switch.jpg[/attachment]

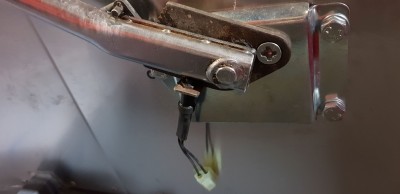

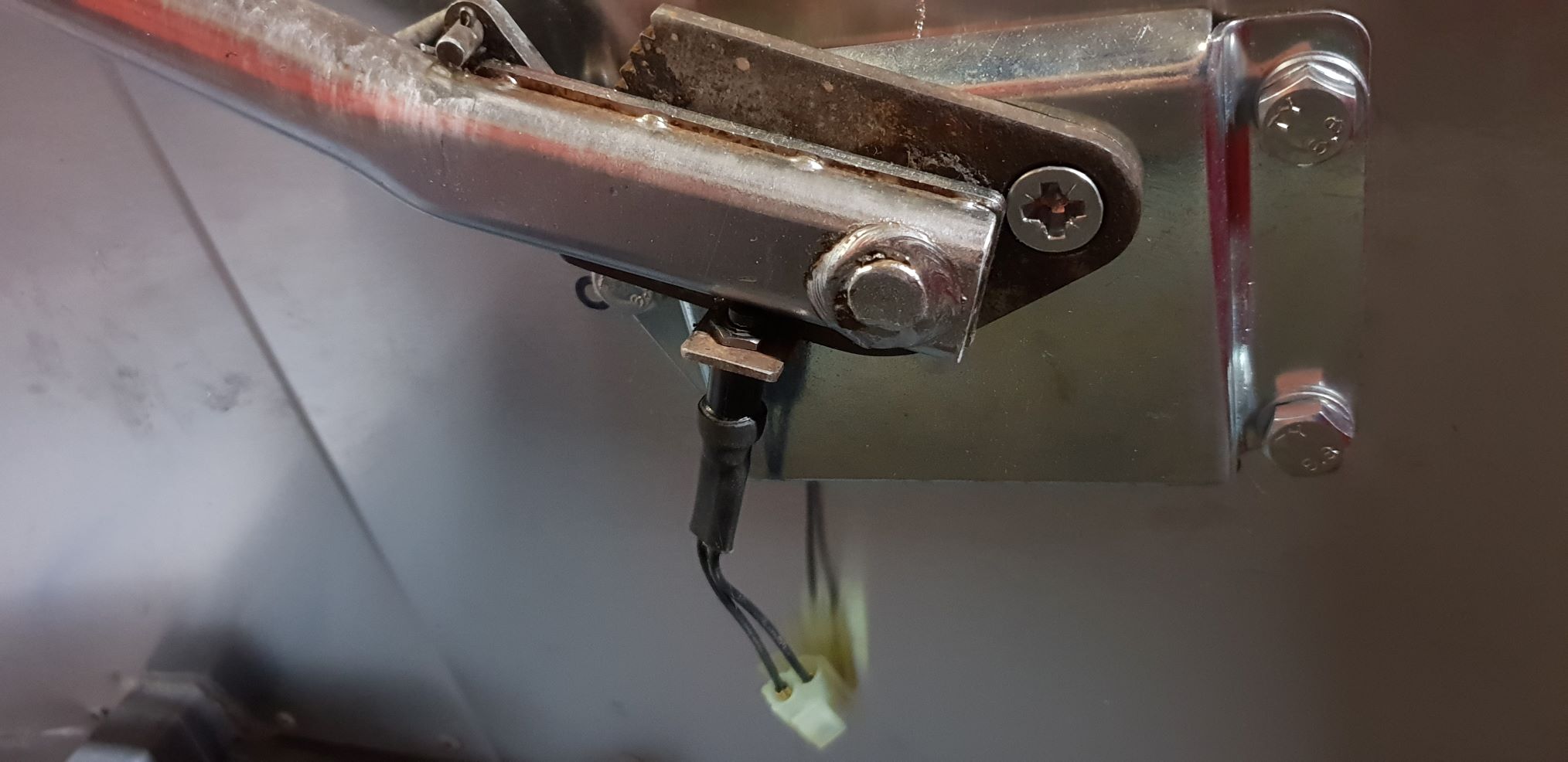

The handbrake switch mount.
[attachment=0]handbrake.jpg[/attachment]

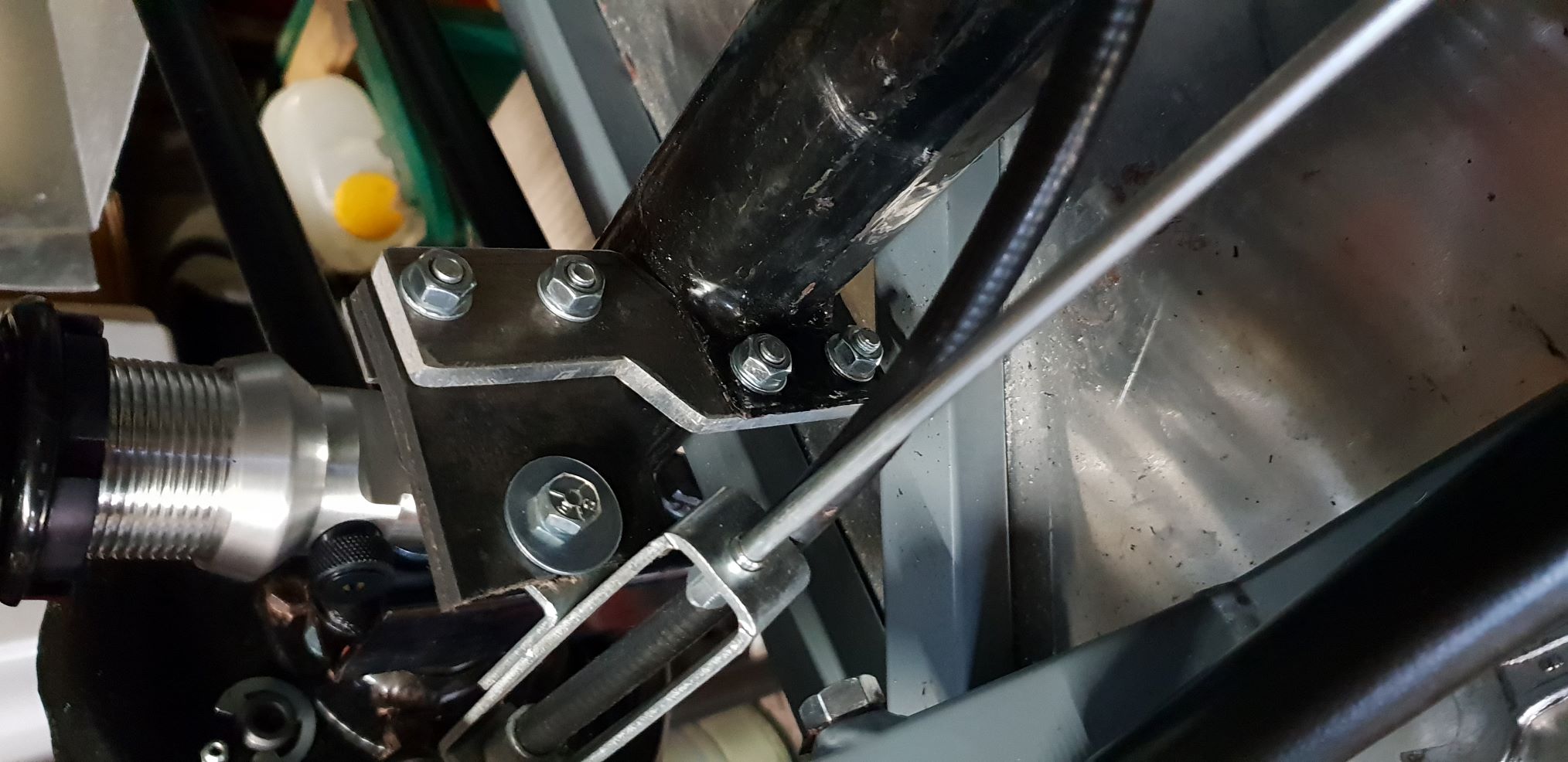

The handbrake axle mounting which replaces the tree on the older axles.
My 11 build
-
- Posts: 64
- Joined: Sat Feb 18, 2017 10:10 pm
Re: My 11 build
The build is going well, I have the high beam switch on the outside as it's easier to find in the dark, as suggestion from a Simon Marks a change he made after the build. Also worth checking where the dash sits with the switches in, a couple of 2016/17 kits had the top rolled too much so need to be adjusted to make sure the steering column lined up. I also had to roll up the bottom edge by the key as it was stopping the starter switch being engaged.
-
- Posts: 118
- Joined: Mon Jul 23, 2018 8:48 am
- Location: U.K.
-
- Posts: 66
- Joined: Sun Mar 29, 2015 2:05 pm
Re: My 11 build
Happy New Year, all.
I would also suggest that you have a look at the fitted dash as soon as you can with the seat and steering wheel in place. When I built mine, I could not see the oil pressure gauge (the top semi-circle of the combined gauge with the water temperature) as it was obscured by the projection of the scuttle. If you are similarly affected, I would suggest transposing this instrument with the fuel gauge (which has no top dial to worry about).
Good to see continuing progress.
Simon
I would also suggest that you have a look at the fitted dash as soon as you can with the seat and steering wheel in place. When I built mine, I could not see the oil pressure gauge (the top semi-circle of the combined gauge with the water temperature) as it was obscured by the projection of the scuttle. If you are similarly affected, I would suggest transposing this instrument with the fuel gauge (which has no top dial to worry about).
Good to see continuing progress.
Simon
-
- Posts: 118
- Joined: Mon Jul 23, 2018 8:48 am
- Location: U.K.
Re: My 11 build
Simon, suggestion taken and gauges exchanged places.

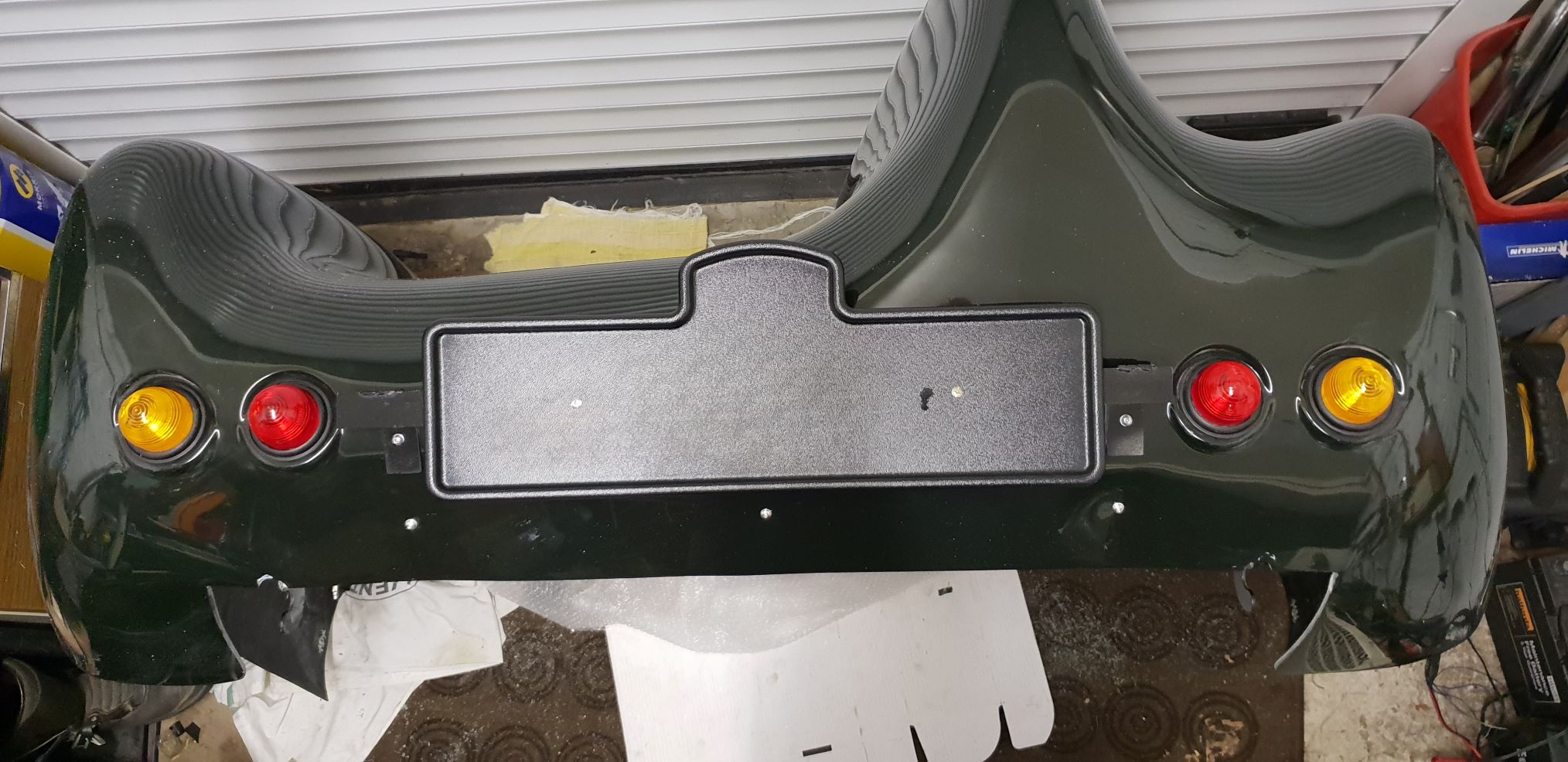

Image of the mock-up of rear lights and number plate holder. I just need to add the reversing and rear fog lights.
[attachment=0]rear lights number plate holder.jpg[/attachment]
Image of the mock-up of rear lights and number plate holder. I just need to add the reversing and rear fog lights.
[attachment=0]rear lights number plate holder.jpg[/attachment]
-
- Posts: 66
- Joined: Sun Mar 29, 2015 2:05 pm
Re: My 11 build
Hi, Again,

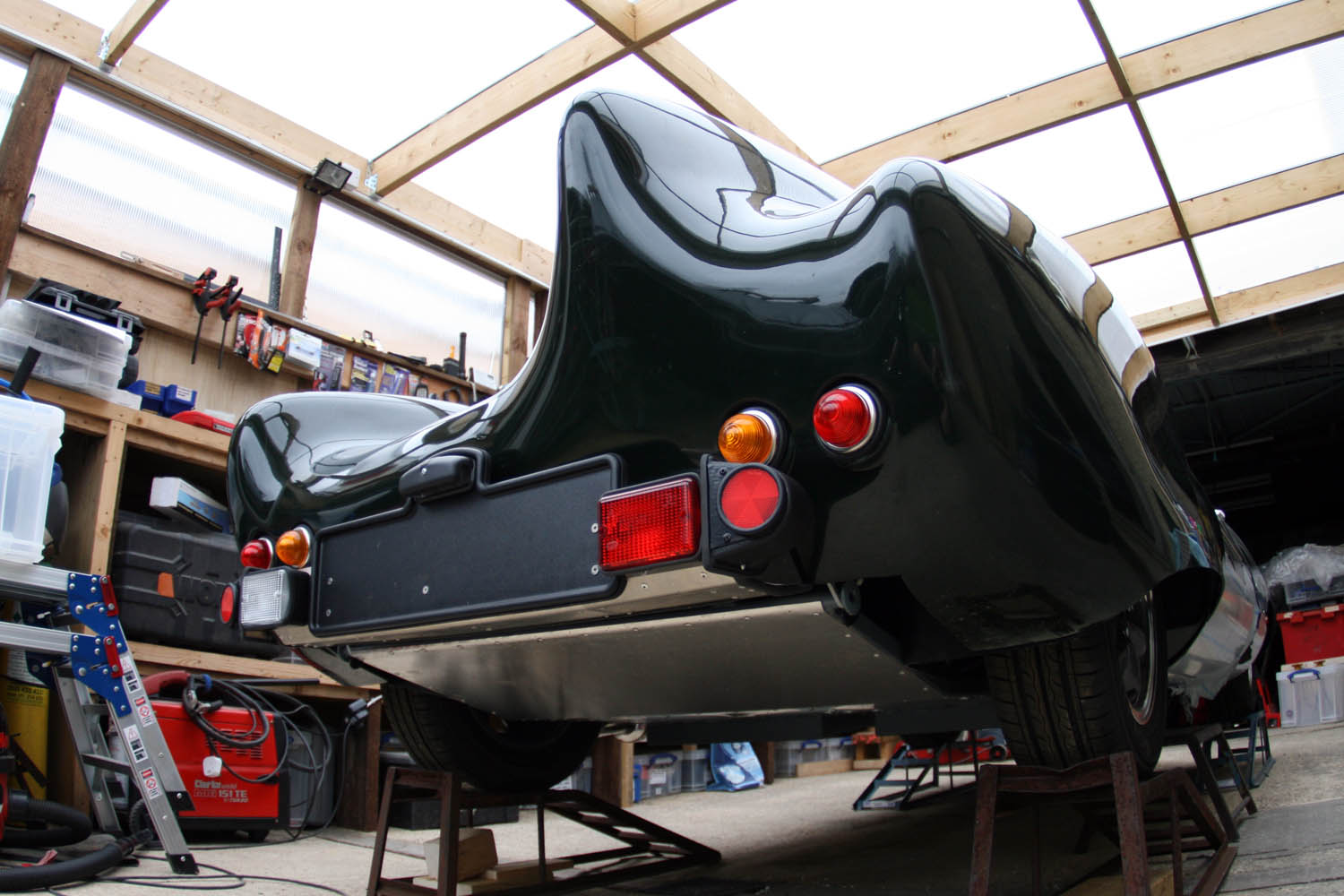

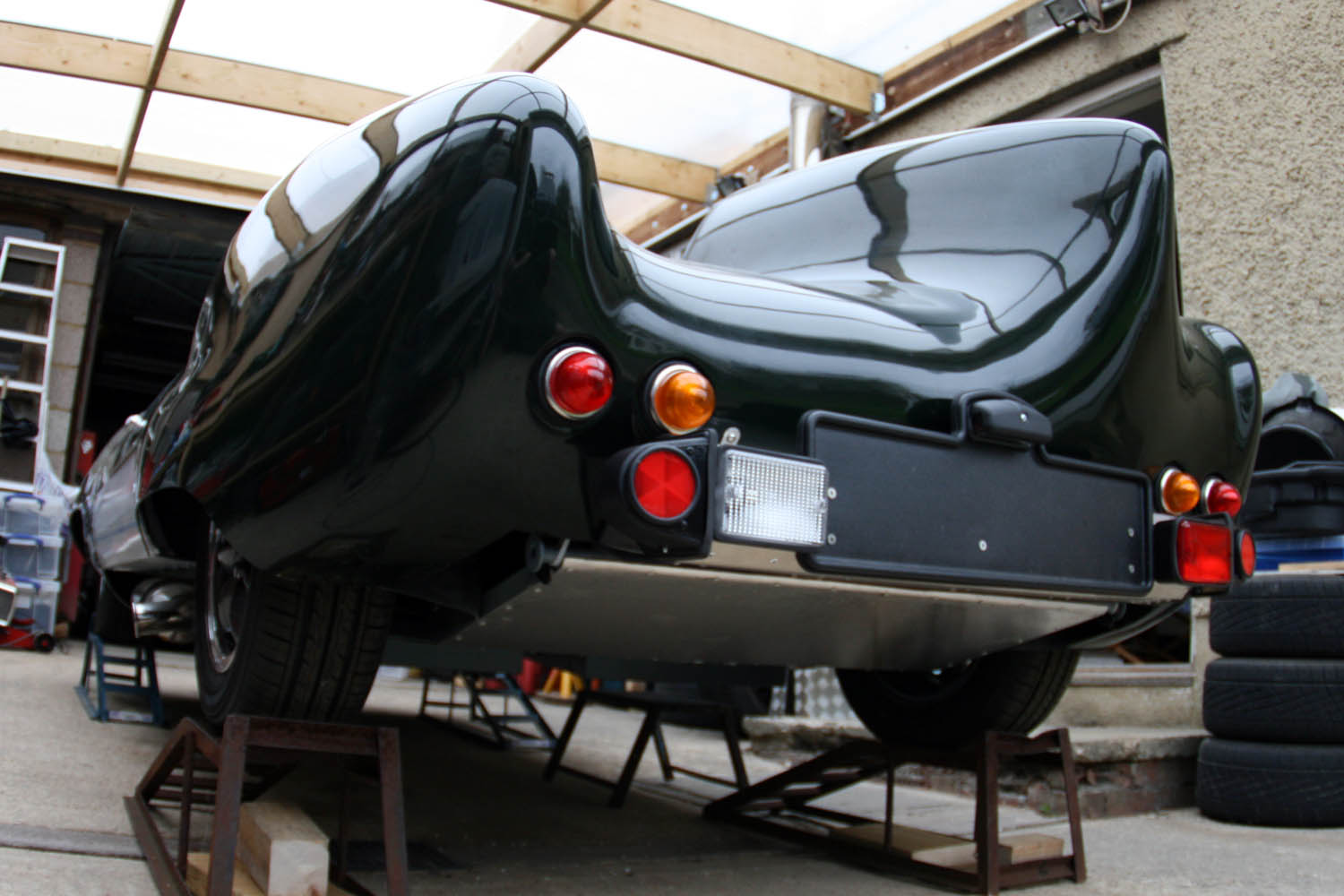

You'll need to transpose the indicators and stop / tail lamps to give you a chance of achieving 100mm separation between the fog and tail lights. I only just managed this and the IVA tester was like a Western sharp shooter as he whipped out his ruler to check my installation!
[attachment=1]Small IMG_5699.jpg[/attachment]
[attachment=0]Small IMG_5700.jpg[/attachment]
Placing the reverse / fog lamps vertically will give you a greater clearance - but watch for shrouding the indicators from angled view.
Simon
You'll need to transpose the indicators and stop / tail lamps to give you a chance of achieving 100mm separation between the fog and tail lights. I only just managed this and the IVA tester was like a Western sharp shooter as he whipped out his ruler to check my installation!
[attachment=1]Small IMG_5699.jpg[/attachment]
[attachment=0]Small IMG_5700.jpg[/attachment]
Placing the reverse / fog lamps vertically will give you a greater clearance - but watch for shrouding the indicators from angled view.
Simon
-
- Posts: 118
- Joined: Mon Jul 23, 2018 8:48 am
- Location: U.K.
Re: My 11 build

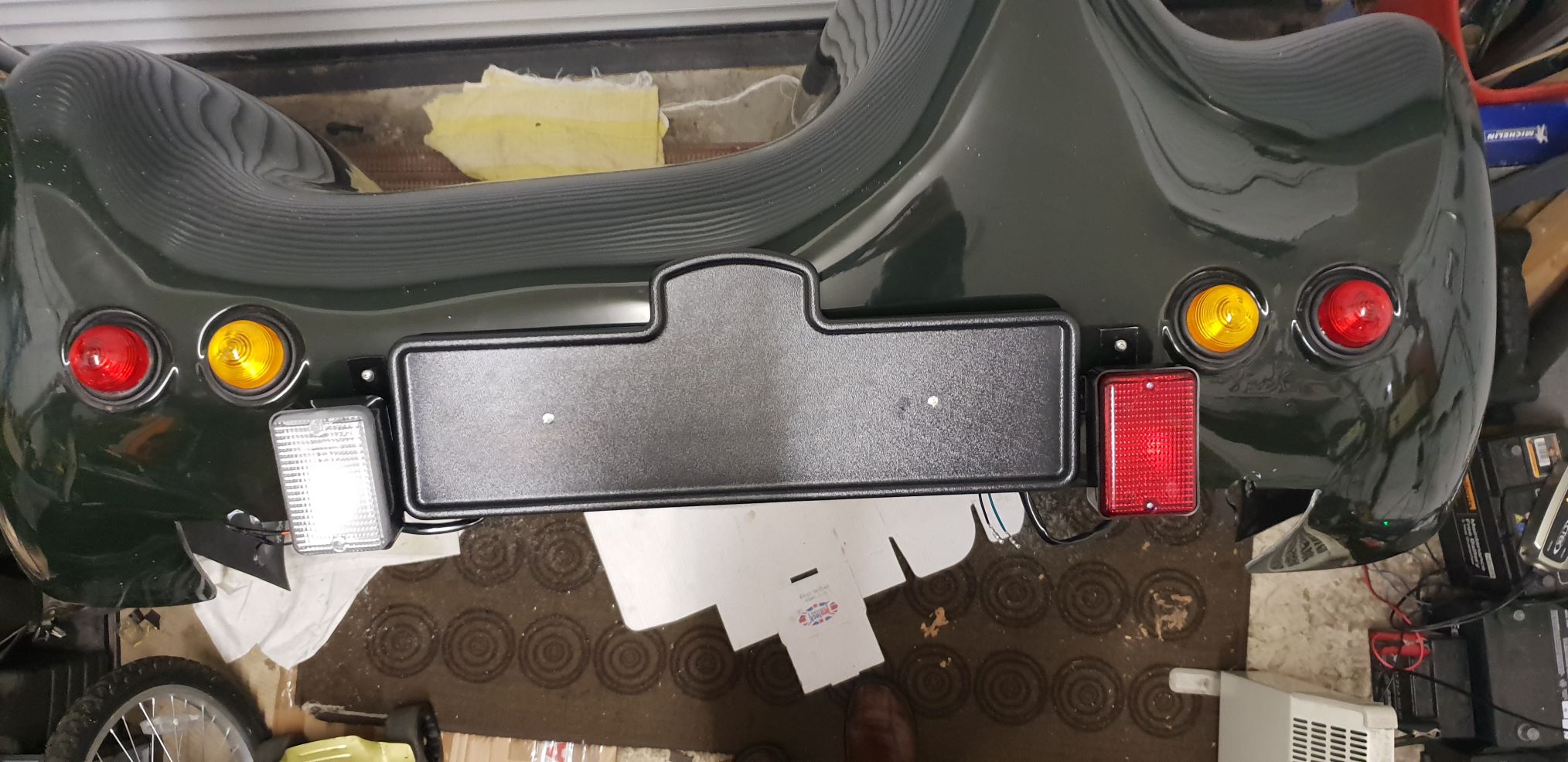

And here's the modified mounting after taking Simon's advice.
[attachment=0]rear lights number plate holder-2.jpg[/attachment]
Just need to connect all the wiring connections now.
[attachment=0]rear lights number plate holder-2.jpg[/attachment]
Just need to connect all the wiring connections now.
-
- Posts: 118
- Joined: Mon Jul 23, 2018 8:48 am
- Location: U.K.
Re: My 11 build
Latest updates include fitted dash, and the fuel pump.

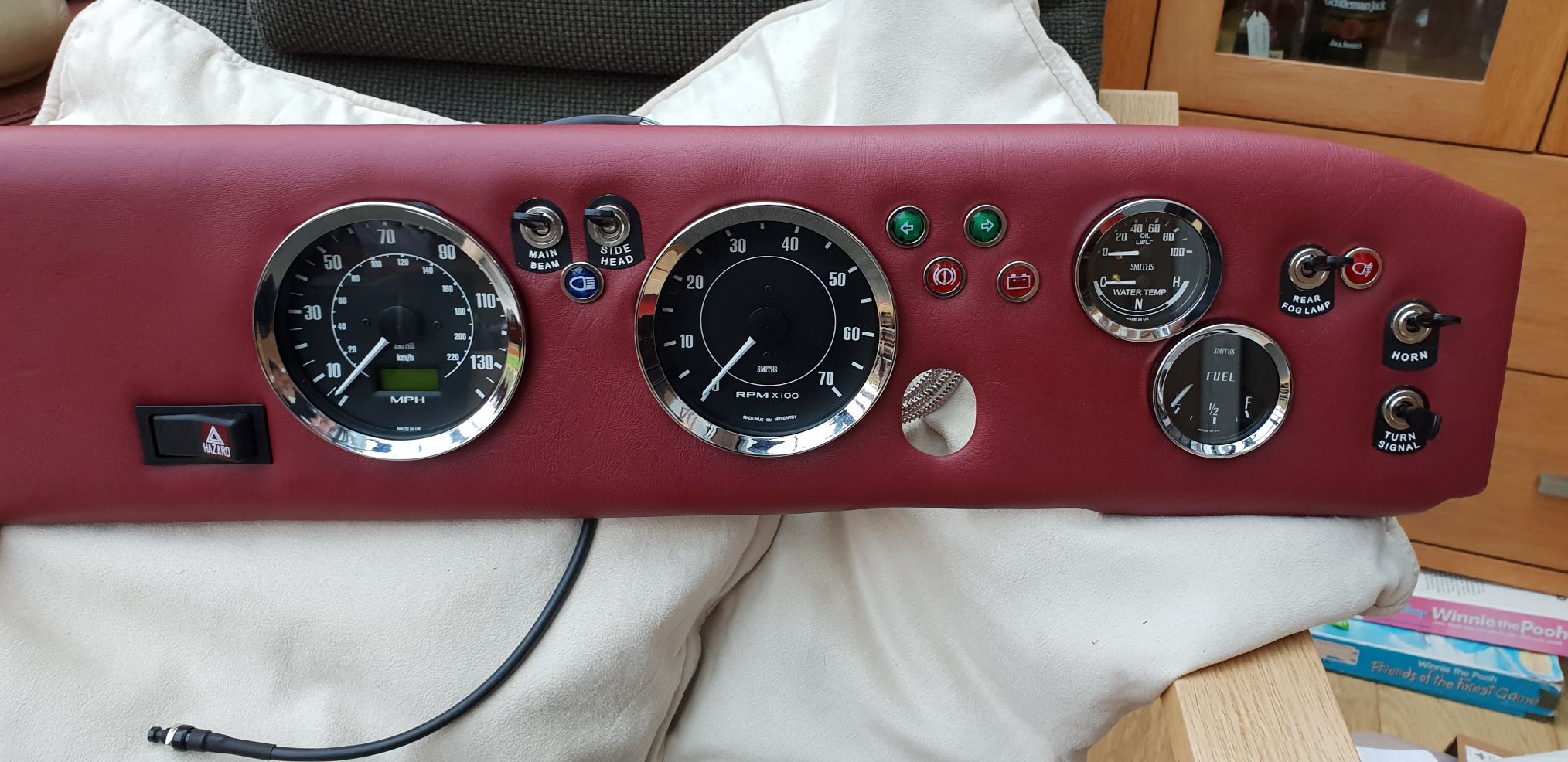

[attachment=1]dash fitted.jpg[/attachment]

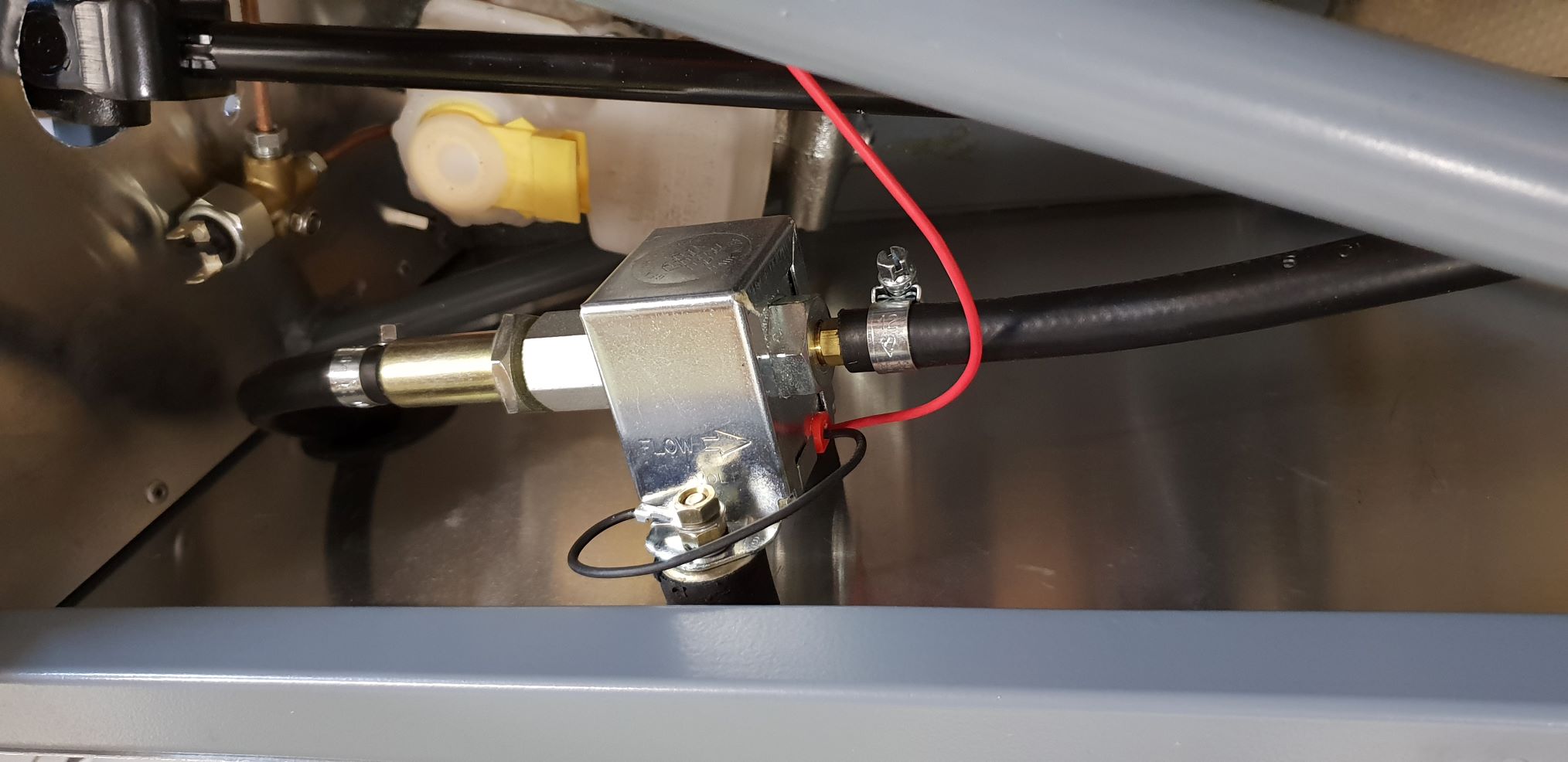

[attachment=0]fuel pump.jpg[/attachment]
[attachment=1]dash fitted.jpg[/attachment]
[attachment=0]fuel pump.jpg[/attachment]
-
- Posts: 118
- Joined: Mon Jul 23, 2018 8:48 am
- Location: U.K.
Re: My 11 build
Just wondering if anyone has a wiring diagram I could use? I am using the Westfield supplied loom.
Thanks
Thanks
-
- Posts: 66
- Joined: Sun Mar 29, 2015 2:05 pm
Re: My 11 build
Hi,
If you would like to pm me an e-mail address, I can let you have the diagrams that I got from Westfield when I built mine.
Simon
If you would like to pm me an e-mail address, I can let you have the diagrams that I got from Westfield when I built mine.
Simon
